CSV-2570 Wireless USB‑C® to HDMI™ Transmitter & Receiver Full HD

Quick Install Guide

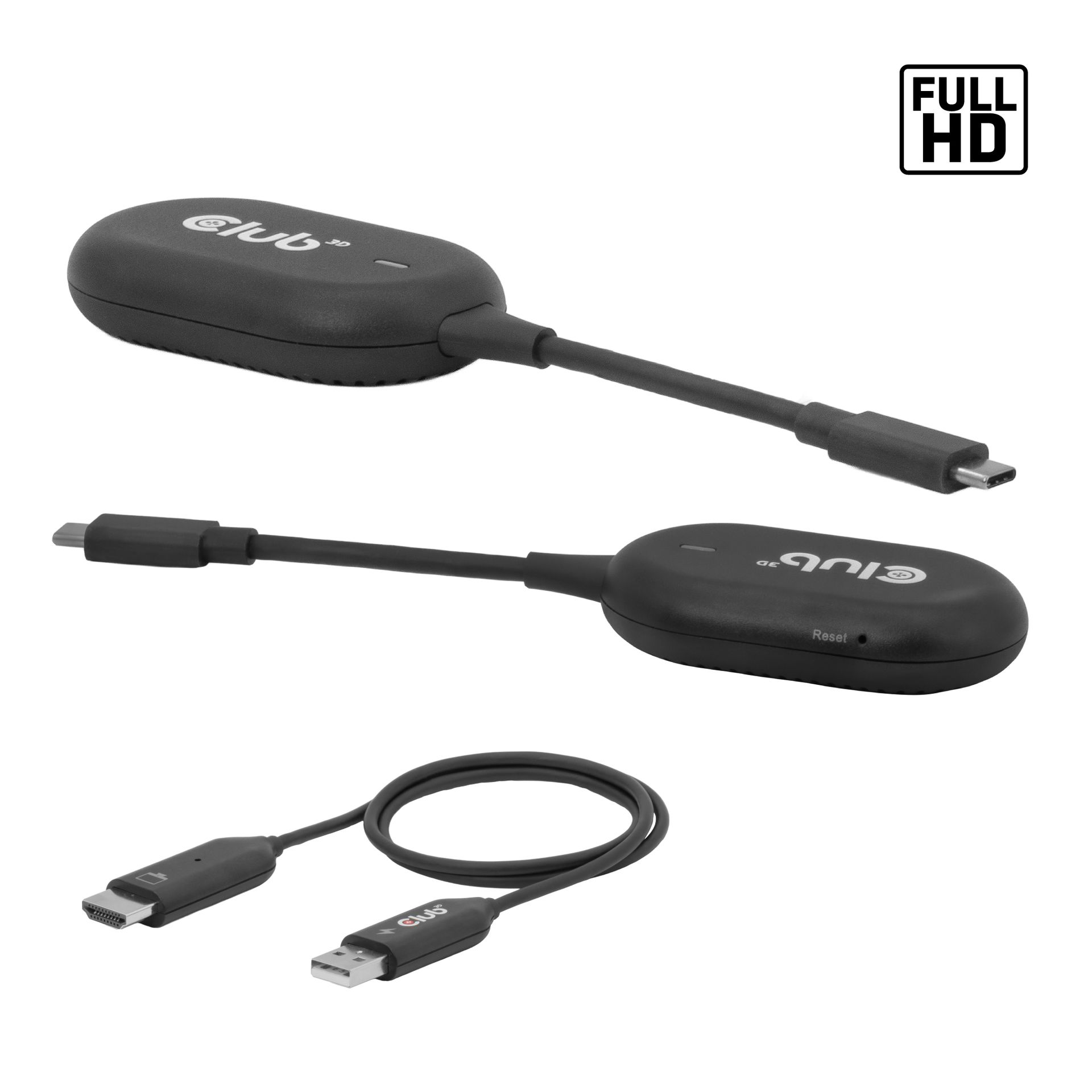

The CSV-2570 consist of

TX (Transmitter)

USB-C connection
Supports DP Alt Mode
Compatible with Windows, macOS, and ChromeOS devices


RX (Receiver)

HDMI output
Connects to TVs and monitors



Pairing Process

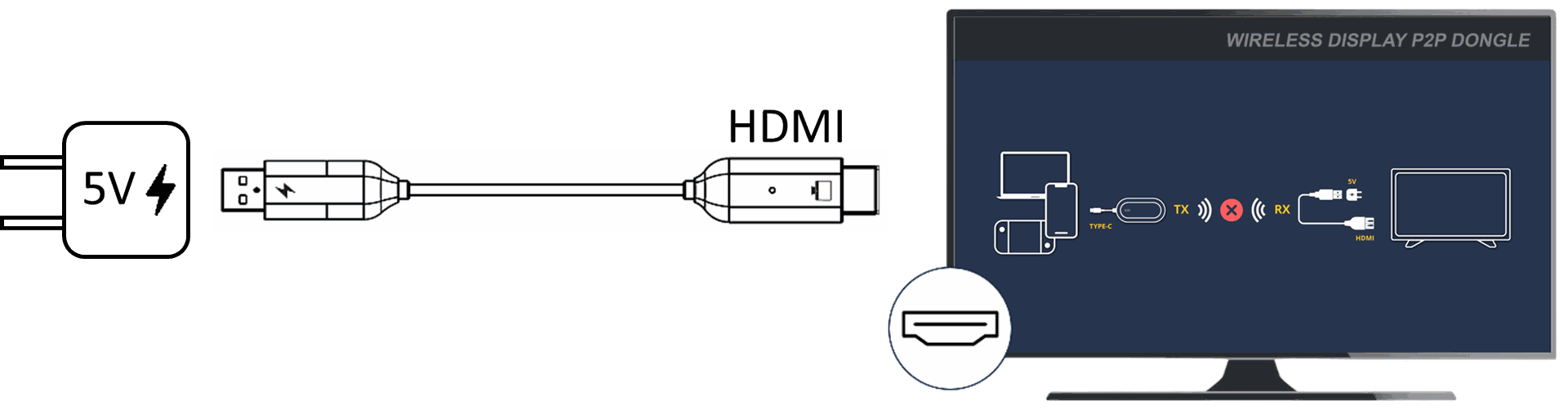

Step 1: Initialize the RX Dongle

  1. Connect the HDMI connector to the display
  2. Connect the USB-A cable to a power source - Make sure the USB A port delivers power for example by charging a phone.
  3. Wait for the device to boot and display the main interface

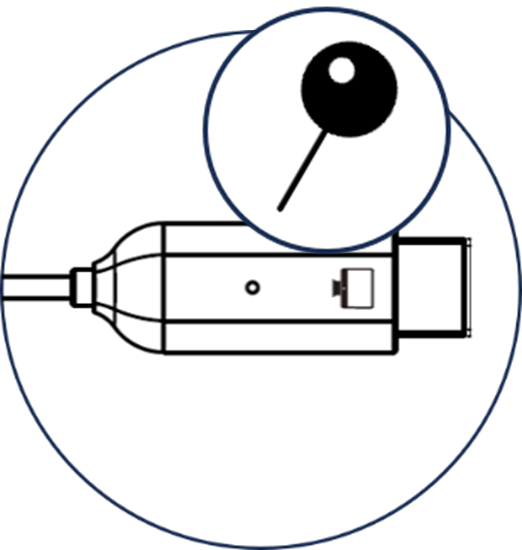

  4. Press and hold the reset button at the HDMI port to get the following prompt

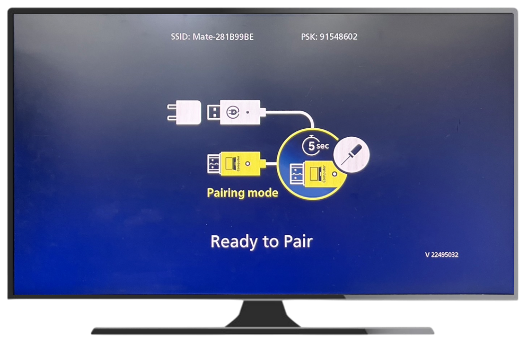

RX is now ready for pairing

Step 2 : Connect to the TX Dongle

  1. Connect the USB C Device to your PC, Notebook or tablet.
  2. Press and hold the Pair button for approximately 5 seconds
  3. Observe LED behavior:
    • LED stops
    • Then flashes quickly after ~1 second
  4. Release the button to start pairing
  5. Confirm:

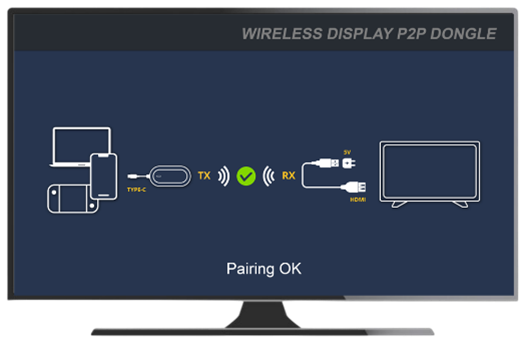

    • “Pairing OK” is displayed
    • Screen output is normal





Turn off/Restore Mirroring in the Pairing Mode

1 Press the Pair and Screen On/Off button on the connected device.
2 The mirroring is off, and the monitor displays the pairing prompt.
3 Press the Pair and Screen On/Off button again to restore the mirroring
