CSV-2554 Quick Install Guide

Adjustable Aluminium Laptop Stand with Integrated USB‑C® Hub (4K@60Hz, 100 W PD, 360° Rotation)


    Thank you for purchasing the CSV‑2554 Adjustable Aluminium Laptop Stand with USB‑C® Hub.
    After unpacking the product, please ensure that all items are included and free from damage.
    If any item is missing or damaged, please inform your supplier immediately.

    Package Contents

  • CSV‑2554 Adjustable Aluminium Laptop Stand with Integrated USB‑C® Hub
  • USB C to USB C Cable

What This Product Is

The CSV‑2554 is a premium adjustable aluminium laptop stand with an integrated USB‑C® hub, designed to combine ergonomic positioning with full desktop connectivity.

It allows a laptop to be:

  • Elevated to a comfortable viewing height
  • Rotated and adjusted freely
  • Connected to external displays, peripherals, network, and power through one central hub



Ergonomic Stand Design

The laptop stand features:

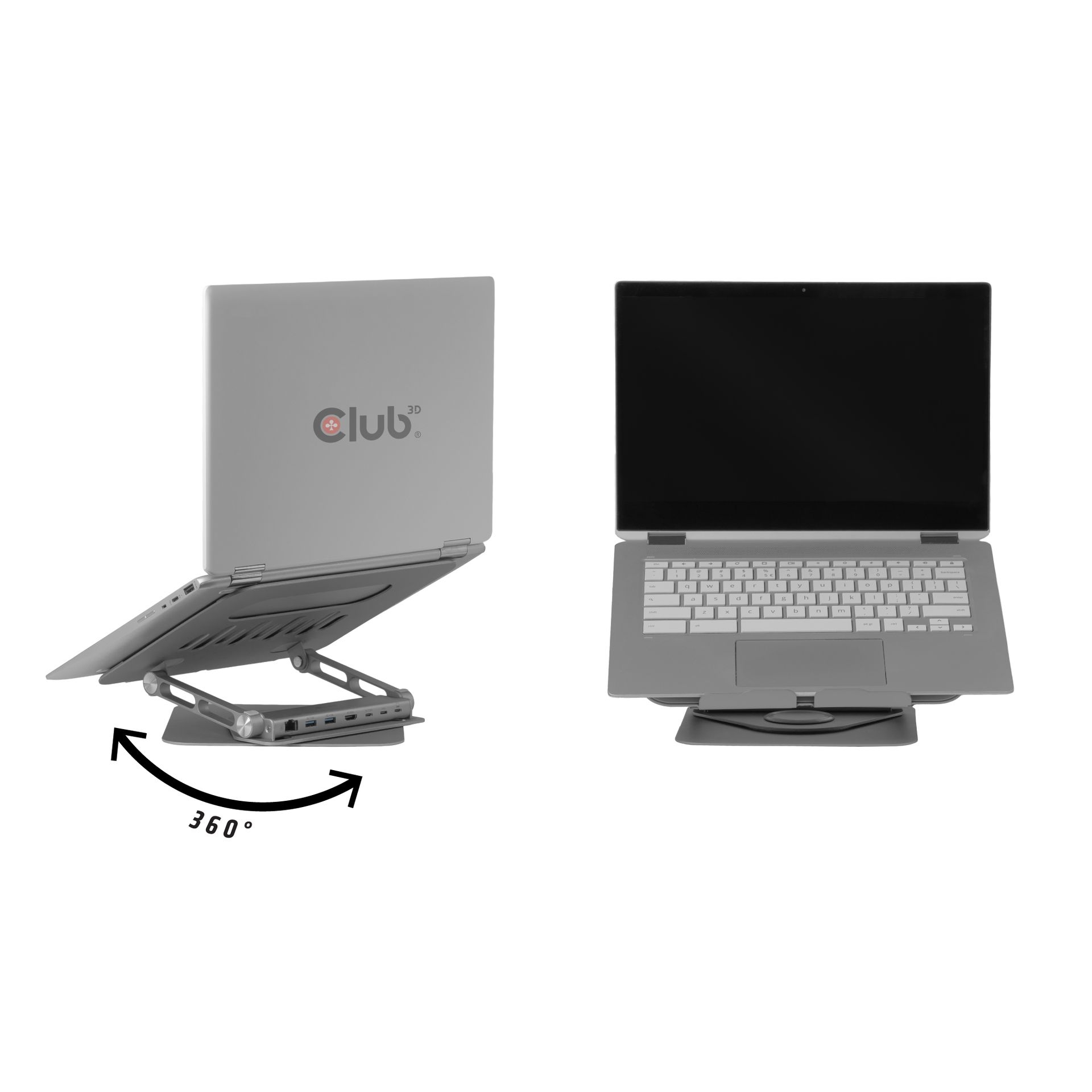

  • 360‑degree rotation, allowing effortless screen sharing and flexible orientation
  • Height and angle adjustability, enabling optimal ergonomics for different working positions
  • Full aluminium construction, offering excellent strength, durability, and heat dissipation
  • A sturdy, stable base designed to securely support laptops during daily professional use

The stand is engineered for long‑term desk setups where stability and flexibility are essential.

Integrated USB‑C® Hub Design

The CSV‑2554 includes a built‑in USB‑C® hub that connects to the host system using a USB‑C® female host port on the stand.

This design provides:

  • Flexible desk placement without a fixed cable
  • Cleaner cable routing and improved cable management
  • Easy replacement or selection of different USB‑C® cables

The integrated hub expands a single USB‑C® connection into video output, USB data, wired networking, and Power Delivery.

Important Display Capability Notice

The integrated hub supports DisplayPort™ 1.4 Alternate Mode provided by the host system.

  • HDMI™ output supports up to 4K@60Hz
  • Actual display resolution and refresh rate depend on the host device, graphics controller, and operating system

The stand and hub do not convert or upscale video signals.

Supported Interfaces Overview

Host Connection

  • USB‑C® (female)
    • DisplayPort™ 1.4 Alternate Mode
    • USB data transfer

Video Output

  • HDMI™
    • Up to 4K@60Hz

USB Interfaces

  • 2 × USB‑A
    • Up to 5 Gbps
  • 1 × USB‑C® data port
    • Up to 5 Gbps

Power Delivery

  • USB‑C® Power Delivery input
    • Up to 100 W input
    • Host charging depends on available power and system load

Networking

  • Gigabit Ethernet RJ‑45
    • 10 / 100 / 1000 Mbps

System Compatibility Notes

  • Designed for USB‑C® hosts supporting DisplayPort™ Alternate Mode
  • Compatible with USB‑C® and Thunderbolt™ laptops
  • Supported operating systems include Windows and macOS

Actual performance depends on the host system and connected peripherals.



    Connection Instructions

    1. Place the CSV‑2554 stand on a flat, stable surface.
    2. Adjust the height, tilt, and rotation of the stand to the desired position.
    3. Connect a USB‑C® cable from the host system to the USB‑C® host port on the stand.
    4. Connect an HDMI™ display if required.
    5. Connect USB devices and an Ethernet cable as needed.
    6. If host charging is required, connect a USB‑C® Power Delivery adapter to the PD input port.

    Power and Charging Behavior

  • USB‑C® Power Delivery input supports up to 100 W
  • Charging power delivered to the host depends on connected devices and system load
  • External power is recommended when multiple peripherals are connected

Ready for Use

Once positioned, connected, and powered, the CSV‑2554 adjustable stand is ready for operation.

You can now enjoy an ergonomic, stable laptop workstation with full adjustability and integrated connectivity through a single USB‑C® connection.

Common Questions

Is the stand stable enough for daily professional use?
Yes. The full aluminium construction and solid design provide excellent stability.

Does the stand rotate fully?
Yes. The stand supports full 360‑degree rotation.

Is the USB‑C® cable fixed to the stand?
No. The stand uses a USB‑C® female host connector, allowing flexible cable placement and easy setup.

Does the stand enhance display performance?
No. Display performance depends on the host system and connected display.
