CSV-2551 QUICK INSTALL GUIDE

8-1 Portable Dock USB Type-C® 10Gbps to HDMI™ and DisplayPort™ 8K30Hz PD Max.100Watt

Thank you for purchasing the CSV‑2551 8‑in‑1 Portable USB‑C® Dock.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.

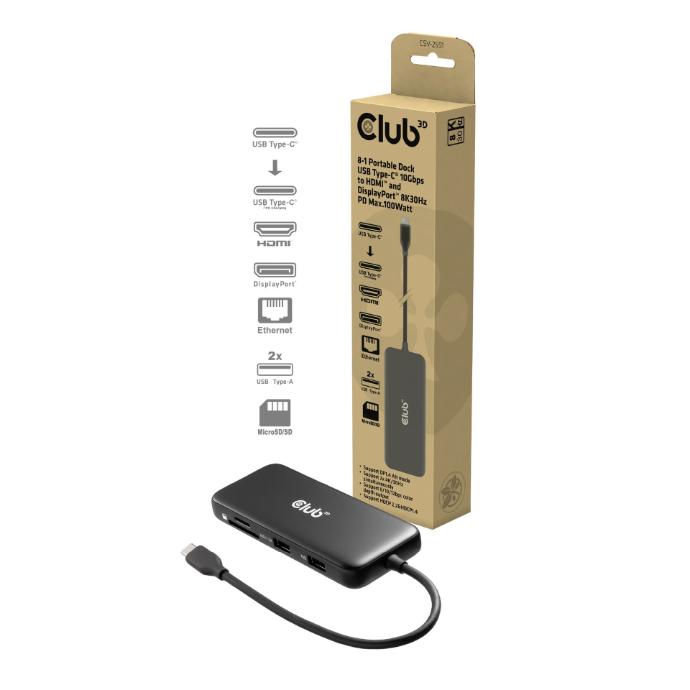

Package Contents

  • CSV‑2551 Portable Dock

What This Product Does

The CSV‑2551 is a compact, portable USB‑C® docking station designed to expand a single USB‑C® or Thunderbolt™ port into video output, USB data ports, Ethernet networking, SD/MicroSD card access, and USB‑C® Power Delivery charging.

It uses DisplayPort™ 1.4 Alternate Mode and supports:

  • A single external display up to 8K@30Hz (DSC), or
  • High‑refresh‑rate displays such as 4K at up to 144Hz, depending on host system capabilities.


Display Capability Notice

The CSV‑2551 supports DisplayPort™ 1.4 Alternate Mode and is capable of high‑resolution and high‑refresh‑rate output.

These capabilities are provided by the dock hardware.

The dock is backward compatible with earlier DisplayPort™ Alternate Mode versions.

However, actual display resolution, refresh rate, and color format are limited by the host system, including:

  • USB‑C® DisplayPort™ version supported
  • Graphics controller (GPU)
  • Operating system

If the host supports DP 1.4 with DSC, output up to 8K@30Hz is possible.
If the host supports only DP 1.2, output will be limited to 4K@30Hz.

These limits reflect the host system capability, not a limitation of the docking station.

Compatibility Notice

  • Video output requires a USB‑C® port that supports DisplayPort™ Alternate Mode
  • MST behavior depends on operating system support
  • Windows systems support extended multi‑display layouts
  • Display behavior may differ on macOS systems due to SST limitations

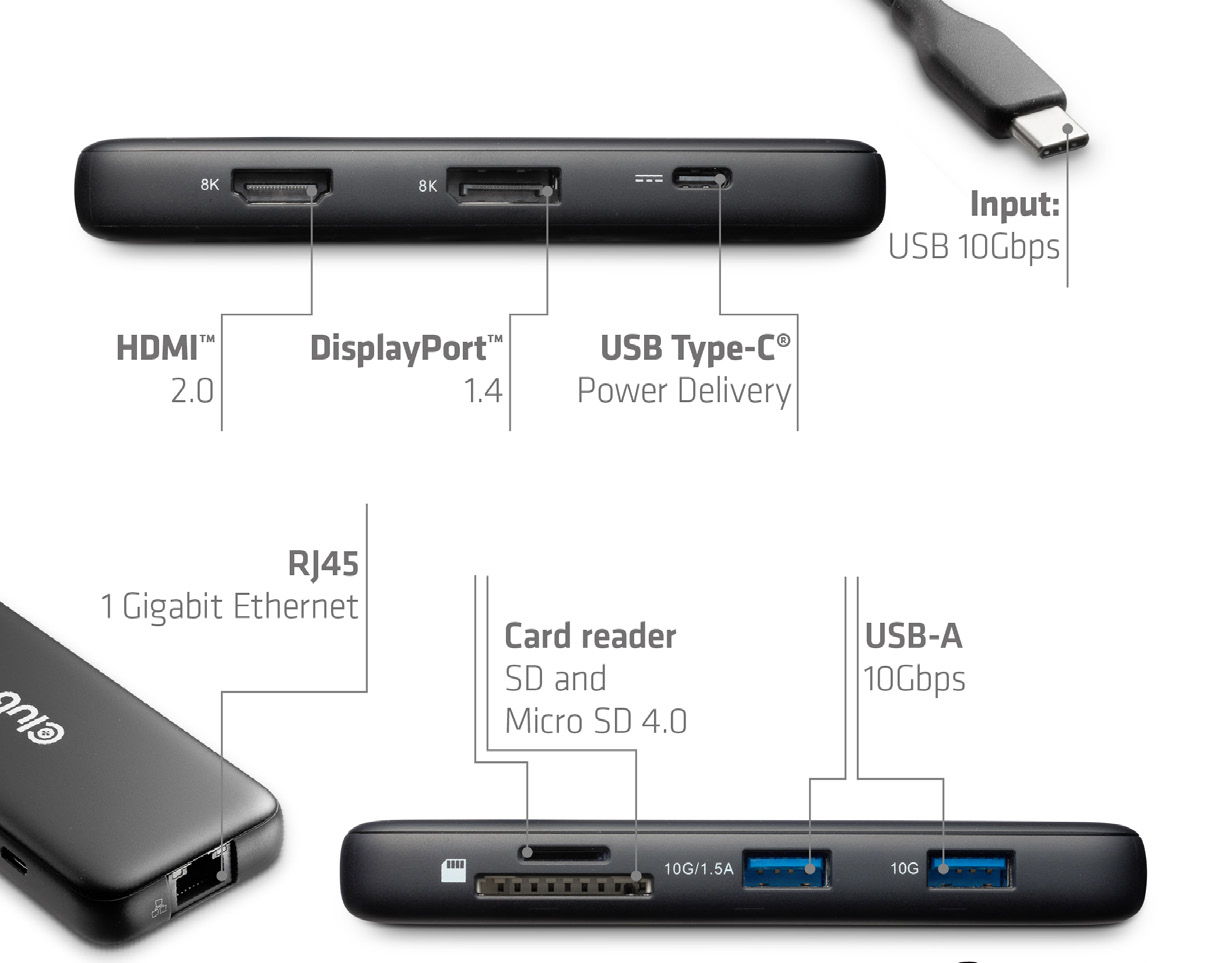

Supported Interfaces Overview

Host Connection

  • USB‑C® Male
    • USB 3.2 Gen 2 (10 Gbps)
    • DisplayPort™ 1.4 Alternate Mode
    • Backward compatible with DP 1.2 / USB 3.0 / USB 2.0

Video Outputs

  • HDMI™
    • Up to 7680 × 4320 @ 30Hz (DSC)
    • HDR support
    • RGB and YUV color formats
    • HDCP 2.3 / 1.4
  • DisplayPort™
    • Up to 8K@30Hz
    • Supports RGB and YUV formats
    • 8‑bit / 10‑bit / 12‑bit color depth
    • HDCP 2.2 / 1.4 / 1.3


USB Interfaces

  • 2 × USB‑A
    • Up to 10 Gbps data per port
    • One port supports 7.5 W (5 V / 1.5 A) charging
    • One port supports 4.5 W (5 V / 0.9 A) charging
    • Shared maximum power output: 9 W

Power Delivery

  • USB‑C® PD 3.0 input
    • Up to 100 W input
    • Up to 85 W passed through to host
    • 15 W reserved for dock operation
    • Supports Fast Role Swap (FRS)

Networking

  • Gigabit Ethernet RJ‑45
    • 10 / 100 / 1000 Mbps
    • Wake‑On‑LAN support
    • Automatic crossover and negotiation

Card Readers

  • SD / MicroSD 3.0
    • Up to 104 MB/s
    • Both slots can operate simultaneously

System Compatibility Notes

  • Designed for USB‑C® hosts supporting DisplayPort™ Alternate Mode
  • Compatible with USB‑C® and Thunderbolt™ hosts
  • Supported operating systems include Windows and macOS
  • Best performance is achieved with hosts supporting DP 1.4 and DSC

Connection Instructions

  1. Connect the USB‑C® host cable of the CSV‑2551 to the USB‑C® port of the host system.
  2. Connect the external display to the HDMI™ or DisplayPort™ output.
  3. Connect USB devices, Ethernet cable, and SD or MicroSD cards as required.
  4. If host charging is required, connect a USB‑C® Power Delivery adapter to the PD input port.

Connect devices one by one to observe proper detection and operation.

Power and Charging Behavior

  • USB‑C® Power Delivery input supports up to 100 W
  • Up to 85 W is available to charge the host system
  • Charging performance may vary depending on connected devices and system load

Ready for Use

Once connected and powered, the CSV‑2551 portable dock is ready for operation.

You can now access high‑resolution display output, USB peripherals, wired networking, memory cards, and host charging through a single USB‑C® connection.

Common Questions

Does this dock support both HDMI™ and DisplayPort™ at the same time?
Display behavior depends on host system support and operating system configuration.

Does the dock convert or upscale video signals?
No. Video output matches the capabilities of the host system and connected display.

Is external power required?
External power is recommended for host charging but not required for basic operation.
