CSV-2512 Quick Install Guide
KVM Switch Dual USB type C to HDMI 4K 60Hz
Thank you for purchasing our CSV-2512.
After unpacking the product, please make sure you have all the items provided and checked for any damages. In case of any missing damaged parts please inform your supplier immediately.
Thank you for purchasing the CSV‑2512 KVM Switch Dual USB‑C® to HDMI™ 4K@60Hz.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.
Package Contents
- CSV‑2512 KVM Switch
What This Product Does
The CSV‑2512 is a USB‑C® KVM switch that allows two USB‑C® host systems to share:
- One HDMI™ display
- One set of USB peripherals (keyboard, mouse, printer, etc.)
Only one host system is active at a time. Switching is performed using the select button on the unit.
The device supports:
- USB‑C® DisplayPort™ Alternate Mode video
- HDMI™ output up to 4K@60Hz
- USB‑A peripheral switching
- USB‑C® Power Delivery up to 100 W
Important Compatibility Notice
Video output requires USB‑C® ports that support DisplayPort™ Alternate Mode.
Display resolution, refresh rate, USB data performance, and charging behavior are limited by the capabilities of the connected host systems, cables, and operating systems.
The CSV‑2512 does not convert or enhance device capabilities.
Supported Capabilities Overview
- Dual USB‑C® host inputs
- HDMI™ 2.0 video output up to 4K@60Hz, HDR supported
- Three USB‑A ports (5 Gbps) for peripherals
- USB‑C® Power Delivery input up to 100 W
- Compatible with Windows and macOS systems supporting DP Alt Mode
Cable and Power Requirements
Use certified USB‑C® cables that support DisplayPort™ Alternate Mode, USB data transfer, and USB Power Delivery.
Lower‑quality USB‑C® cables may limit video, data, or charging performance.
For charging support and stable operation, a USB‑C® Power Delivery adapter up to 100 W is recommended but not mandatory.

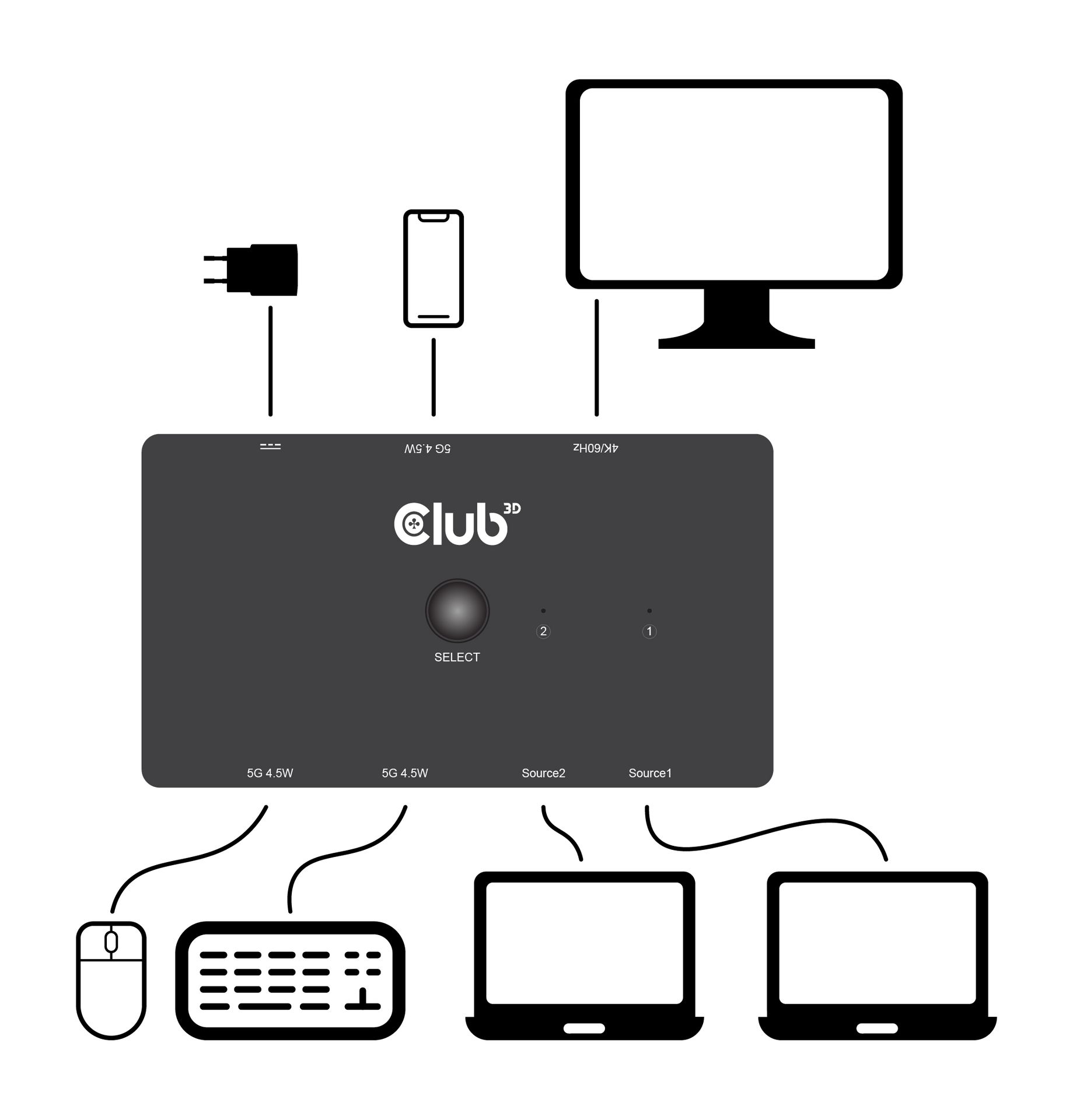

Connection Example: Two USB‑C® Hosts to One HDMI™ Display
This is the standard KVM use case.
- Connect Host System 1 to the USB‑C® port labeled Source 1 on the CSV‑2512.
- Connect Host System 2 to the USB‑C® port located near the USB‑A ports (Source 2).
- Connect the HDMI™ display to the HDMI™ output port on the CSV‑2512.
- Connect keyboard, mouse, and other USB peripherals to the USB‑A ports.
- If host charging is required, connect a USB‑C® Power Delivery adapter to the USB‑C® PD charging port.
Power and Charging Behavior
- 15 W of incoming power is reserved for powering the KVM unit
- Remaining power is distributed to connected hosts as follows:
- Single host connected: up to 85 W
- Two hosts connected:
- Source 1: up to 65 W
- Source 2: up to 20 W
The unit can operate without an external PD adapter by drawing limited power from the connected hosts, but charging performance will be reduced.

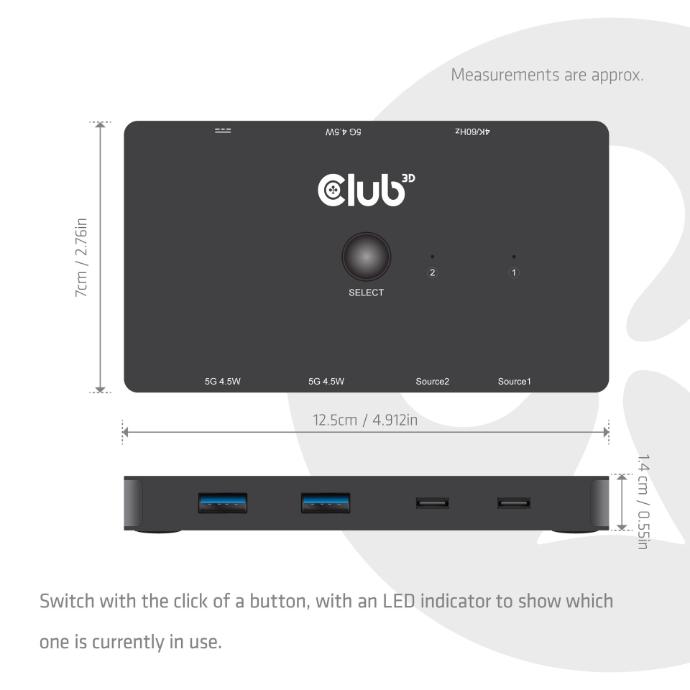

Switching Between Hosts
- Press the Select button on the CSV‑2512 to switch between Source 1 and Source 2
- The LED indicator shows which host is currently active
- The active host controls the display and connected USB peripherals
Ready for Use
Once connected and powered, the CSV‑2512 is ready for normal operation.
You can now switch between two USB‑C® systems while sharing one HDMI™ display and a single set of peripherals.
Common Questions
Can both computers be used at the same time?
No. Only one host system can be active at a time.
Does the CSV‑2512 work with all USB‑C® ports?
Video output requires USB‑C® ports that support DisplayPort™ Alternate Mode.
Does the switch convert or scale video signals?
No. Video output matches the capabilities of the host system and display.
Is an external power adapter required?
An external USB‑C® PD adapter is recommended for proper charging but not required for basic switching operation.
