CSV-1585 QUICK INSTALL GUIDE

USB‑C® KVM Switch / Dock with DisplayPort™ and HDMI™ 4K@60Hz

Thank you for purchasing the CSV‑1585 DisplayPort™ / HDMI™ KVM Switch and Dock for USB‑C® inputs.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.

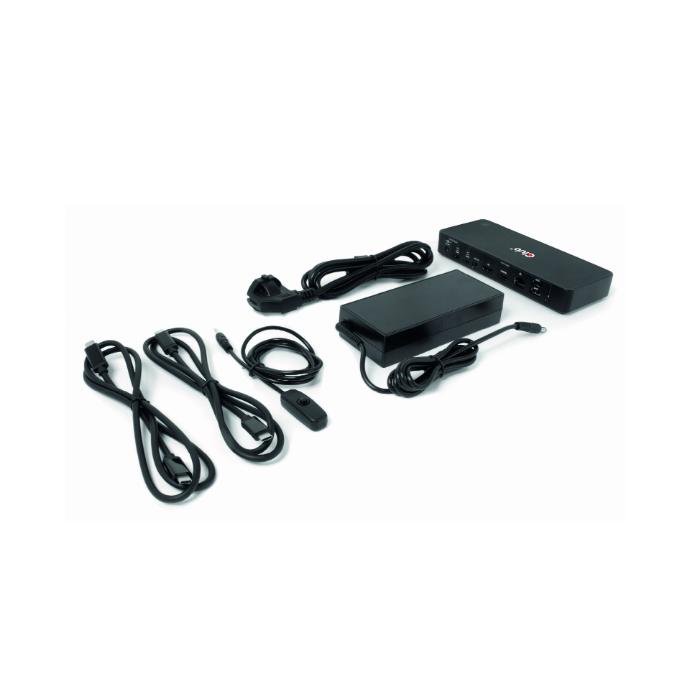

Package Contents

  • CSV‑1585 DisplayPort™ / HDMI™ KVM Switch and Dock
  • 2 × USB‑C® host connection cables (approx. 1 m / 3.28 ft)
  • Remote switching cable (approx. 1 m / 3.28 ft)
  • Power supply (Input 100–240 VAC, Output 20 V / 6 A, 120 W)

What This Product Does

The CSV‑1585 is a USB‑C® KVM switch combined with a docking station.

It allows two USB‑C® source systems to share a single set of peripherals, including:

  • One DisplayPort™ or HDMI™ display
  • USB input devices such as keyboard and mouse
  • Audio peripherals
  • Network connection

The unit supports video output up to 4096 × 2160 @ 60 Hz and provides power delivery, USB data, Ethernet, and audio through a single device.

Only one host system is active at a time.



Important Compatibility Notice

Video resolution, refresh rate, and functionality depend on the capabilities of the connected host systems, including USB‑C® DisplayPort™ Alternate Mode support, graphics controller, and operating system.

The KVM switch does not override or extend host system limitations.

Display behavior and supported resolutions are determined by the source device and the connected display.

Supported Features

  • Dual USB‑C® host inputs
  • DisplayPort™ or HDMI™ video output up to 4K@60Hz
  • Compatible with USB‑C® DisplayPort™ Alternate Mode
  • KVM switching via front button or remote switching cable
  • USB data switching for connected peripherals
  • Dual power delivery paths via external power supply and USB‑C® PD
  • LED indicators showing active host selection


Interfaces Overview

Inputs

  • USB‑C® host input for PC1
  • USB‑C® host input for PC2
  • DC power input (20 V / 120 W)

Outputs and Ports

  • DisplayPort™ output (female)
  • HDMI™ output (female)
  • USB‑C® Power Delivery 3.0 (up to 100 W) for charging the active host
  • 2 × USB‑C® Gen1 data ports (5 Gbps)
  • 3 × USB‑A Gen1 data ports (5 Gbps), one with BC1.2 charging support
  • Gigabit Ethernet RJ‑45
  • 3.5 mm headset audio port
  • Remote switching cable port



Power and Charging Behavior

  • External power is required for normal operation.
  • The unit supports USB‑C® Power Delivery 3.0 up to 100 W for charging the active host system.
  • Available charging power depends on overall system load and connected devices.

Connection Instructions

  1. Connect the power supply to the 20 V DC input on the CSV‑1585.
  2. Connect each host system to the PC1 and PC2 USB‑C® input ports using the supplied USB‑C® cables.
  3. Connect the remote switching cable to the remote switch port if remote switching is required.
  4. Connect the display to the DisplayPort™ or HDMI™ output.
  5. Connect the Ethernet cable to the RJ‑45 port if network access is required.
  6. Connect keyboard, mouse, and other USB peripherals to the USB‑A or USB‑C® data ports.
  7. If host charging is required, connect a USB‑C® PD power source (up to 100 W) to the PD port for the active host.


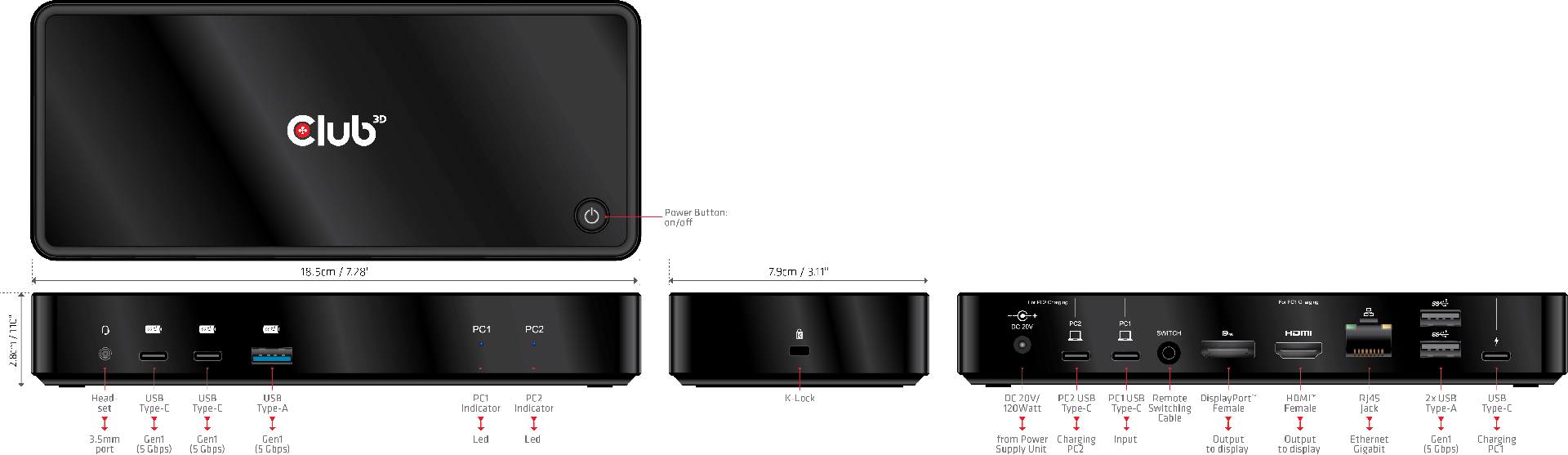

Controls and Indicators

Top Panel

  • Power button: Press to turn the unit on or off
  • Power indicator LED:
    • LED turns on when external power is connected and the unit is active
    • Long press (approximately 3 seconds) required to power on or off
    • Default active host after power‑on is PC2

Front Panel

  • 3.5 mm headset audio port
  • USB‑C® Gen1 data ports
  • USB‑A Gen1 data port
  • PC1 / PC2 selection LEDs indicating the active host

Back Panel

  • Power input (20 V / 6 A)
  • PC1 and PC2 USB‑C® host inputs
  • Remote switch cable input
  • DisplayPort™ output
  • HDMI™ output
  • Gigabit Ethernet
  • USB‑A Gen1 data ports
  • USB‑C® Power Delivery input for host charging


    Ready for Use

    Once connected and powered, the CSV‑1585 is ready for operation.

    You can now switch between two USB‑C® host systems and share a single display, keyboard, mouse, network connection, audio devices, and USB peripherals.

    Common Questions

    Can both host systems be used at the same time?
    No. Only one host system can be active at a time.

    Does the KVM switch change the display capabilities of my system?
    No. Display performance depends on the host system and connected display.

    Is external power required?
    Yes. External power is required for normal operation and host charging.

    Can I switch hosts manually and remotely?
    Yes. Host switching can be done using the front panel control or the remote switching cable.
