CSV-1581 QUICK INSTALL GUIDE

Thunderbolt™ 4 Certified 11-in-1 Docking Station



Thunderbolt™ 4 Certified 11‑in‑1 Docking Station

Thank you for purchasing the CSV‑1581 Thunderbolt™ 4 Certified 11‑in‑1 Docking Station.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.

Package Contents

  • CSV‑1581 Thunderbolt™ 4 Certified 11‑in‑1 Docking Station
  • Power Adapter (20 V / 7.5 A, 150 W)

What This Product Does

The CSV‑1581 is a Thunderbolt™ 4 certified docking station designed to expand a single Thunderbolt™ connection into multiple high‑speed ports.

It supports data transfer and video output at up to 40 Gbps, allowing connection of external displays, USB devices, storage, network, and audio peripherals while providing smart power delivery to the host system.

The docking station supports:

  • One external display up to 8K@30Hz, or
  • Two external displays up to 4K@60Hz,
    depending on host system capabilities.


Important Compatibility Notice

Display performance, including resolution, refresh rate, and number of supported displays, is limited by the host system, graphics controller, operating system, and connected displays.

The docking station does not override host system limitations.

Apple macOS systems support Single‑Stream Transport (SST) only.
Dual‑display support on macOS requires systems with M1 Pro or M1 Max processors.
This behavior is expected and does not indicate a product defect.



Display Behavior Summary

  • Supports single 8K@30Hz or dual 4K@60Hz display configurations
  • Display behavior depends on host system and operating system support
  • The docking station does not convert or enhance source display capabilities

Ready for Use

Once powered and connected, the CSV‑1581 docking station is ready for use.

You can now connect external monitors, high‑speed peripherals, network, storage, audio devices, and charge the host system through a single Thunderbolt™ connection.

System Compatibility Notes

  • Designed for Thunderbolt™ 4‑based Windows systems
  • Compatible with Thunderbolt™ 3‑based Apple systems running macOS 11 or later, limited to models supporting dual display output
  • Host system must support Thunderbolt™ for full functionality

Actual performance depends on host system and connected devices.

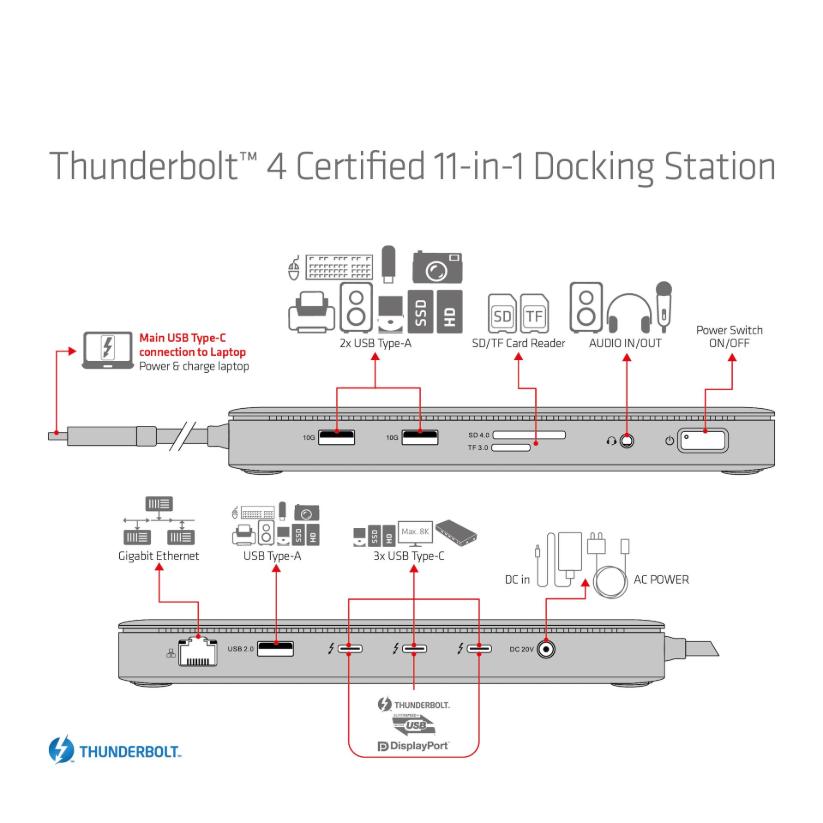

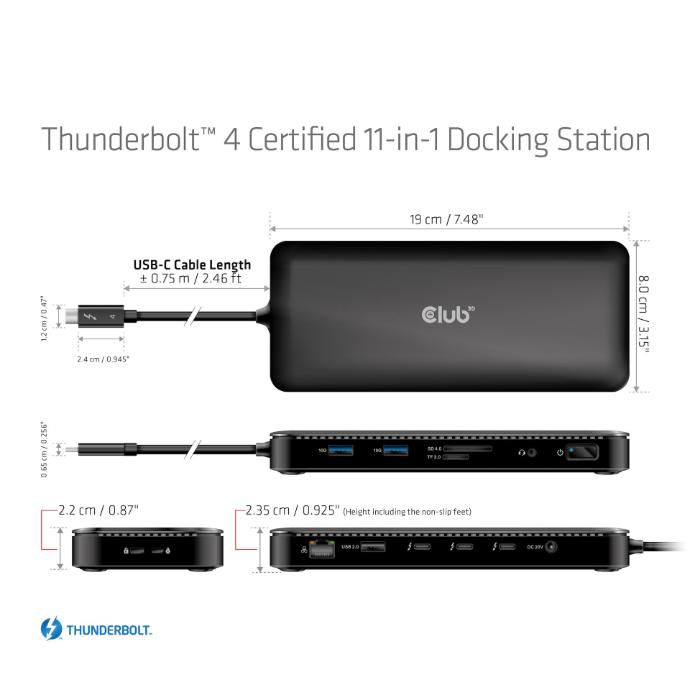

Connection Instructions

  1. Connect the USB Type‑C Male connector of the docking station to the Thunderbolt™ port of the host system.
  2. Connect the power adapter to the docking station and plug it into a wall socket.
  3. Connect displays, USB devices, storage, Ethernet, and audio peripherals to the docking station using cables that support the specifications of each connected device.
  4. Toggle the power switch on the docking station.

When powered on, the LED indicator turns blue, indicating normal operation.

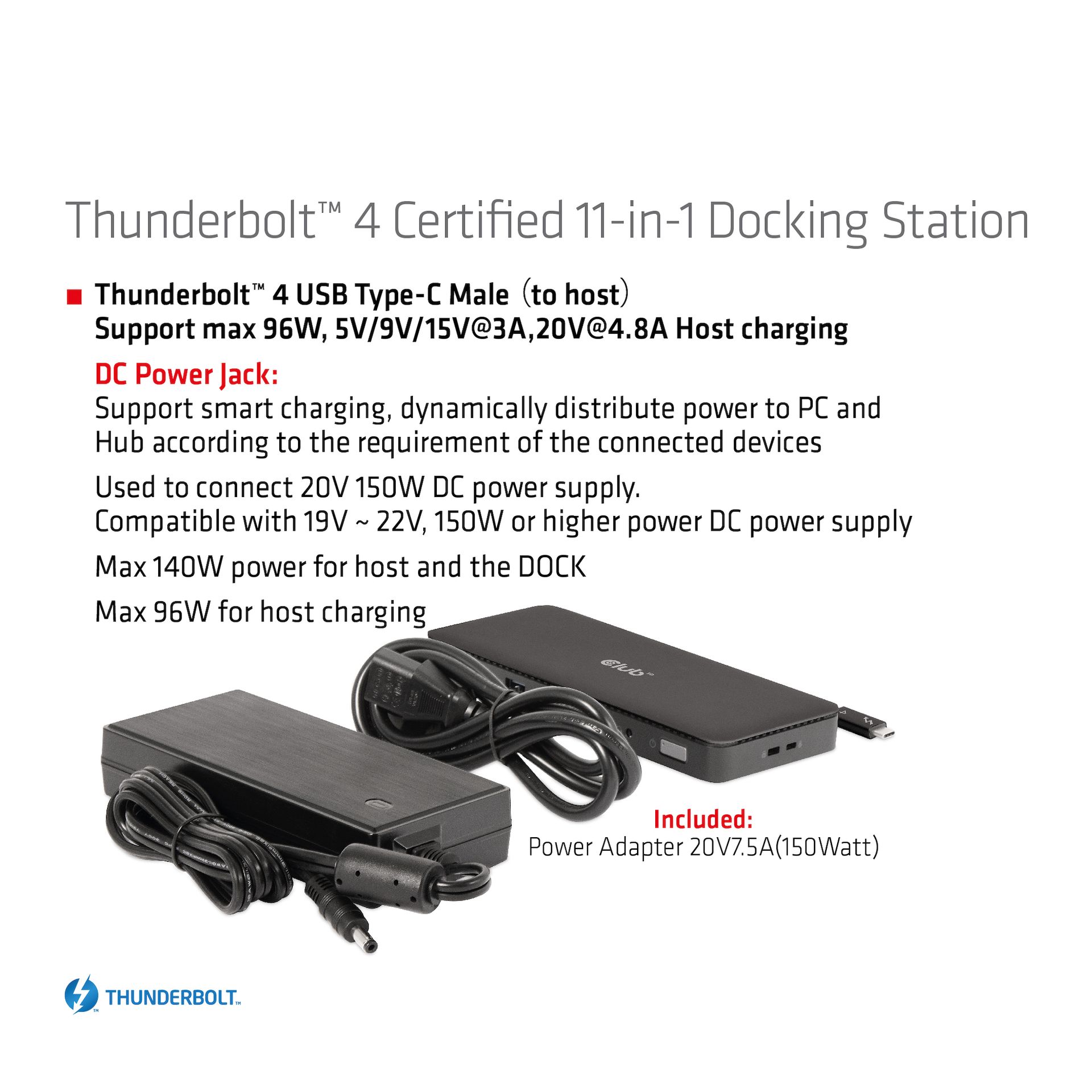

Power and Charging Behavior

  • External power is required for full operation.
  • The docking station supports smart power distribution.
  • Up to 100 W can be supplied to the host system, depending on system load and connected devices.
  • Total available power from the power adapter is 150 W.


Common Questions

Will this docking station always support dual displays?
Dual‑display support depends on the host system. Some macOS systems support only single‑stream display output.

Does the docking station change the display capability of my system?
No. Display output depends on the host system and operating system.

Is external power required?
Yes. External power is required for normal operation and host charging.
