CSV-1384 Quick Install Guide

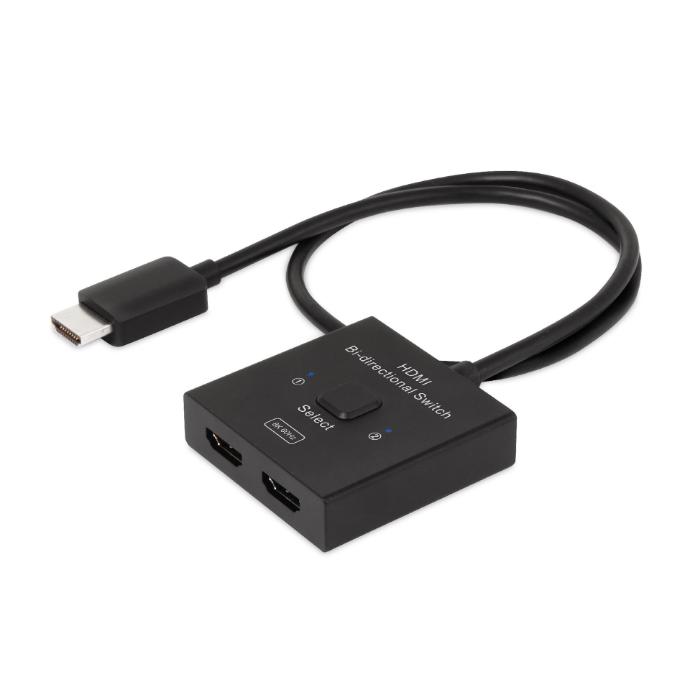

  HDMI™ 2‑in‑1 Bi‑Directional Switch for 8K@60Hz or 4K@120Hz

Switch HDMI™ signals between devices in two directions using one compact, bi‑directional switch. Designed for high‑resolution video and digital audio up to 8K@60Hz or 4K@120Hz, depending on the source signal

Package Contents

Please verify that all items are included and undamaged before installation:

  • 1× CSV‑1384 HDMI™ 2‑in‑1 Bi‑Directional Switch
  • QR Code for downloading the Quick Install Guide

If any item is missing or damaged, contact your supplier before use. [club-3d.com]

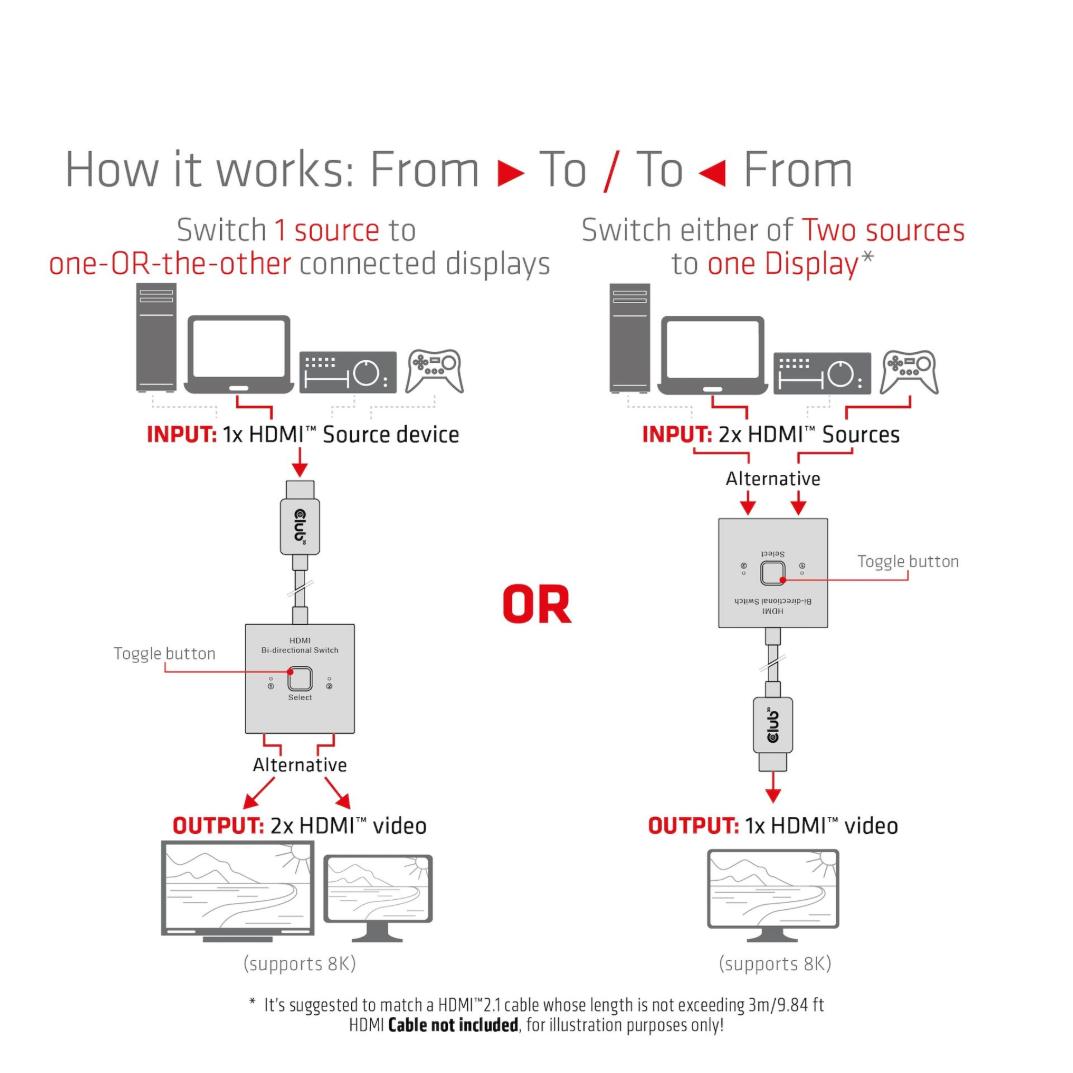

What This Product Does

The CSV‑1384 is an HDMI™ bi‑directional switch, not a splitter.

It can be used in one of two configurations:

  • Two HDMI™ sources → one HDMI™ display, or
  • One HDMI™ source → one of two HDMI™ displays

Only one channel is active at a time.

ℹ️ This product selects between signals or displays. It does not output to multiple displays simultaneously



    Supported Features

  • HDMI™ 2‑in‑1 bi‑directional switching
  • Supports video resolutions up to 7680 × 4320 @ 60Hz
  • Supports 4K@120Hz, depending on source signal
  • Supports HDR
  • HDCP pass‑through
  • Supports HDMI™ 2.1
  • One‑button switching with blue LED indicators showing active channel



 Connection Procedure

  1. Decide whether the CSV‑1384 will be used as:
    • two sources to one display, or
    • one source to two displays.
  2. Connect the HDMI™ source device(s) and HDMI™ display(s) to the corresponding HDMI™ ports using HDMI™ male‑to‑male cables.
  3. Power on the connected devices.
  4. When powered, the switch defaults to Channel 1.
  5. Press the toggle button to switch to the desired channel.



Summary of Operation

  • One HDMI™ channel active at any time
  • No signal conversion or scaling
  • High‑resolution support depends on the source signal
  • Designed for manual, reliable switching

All described behavior is normal and expected for this product.

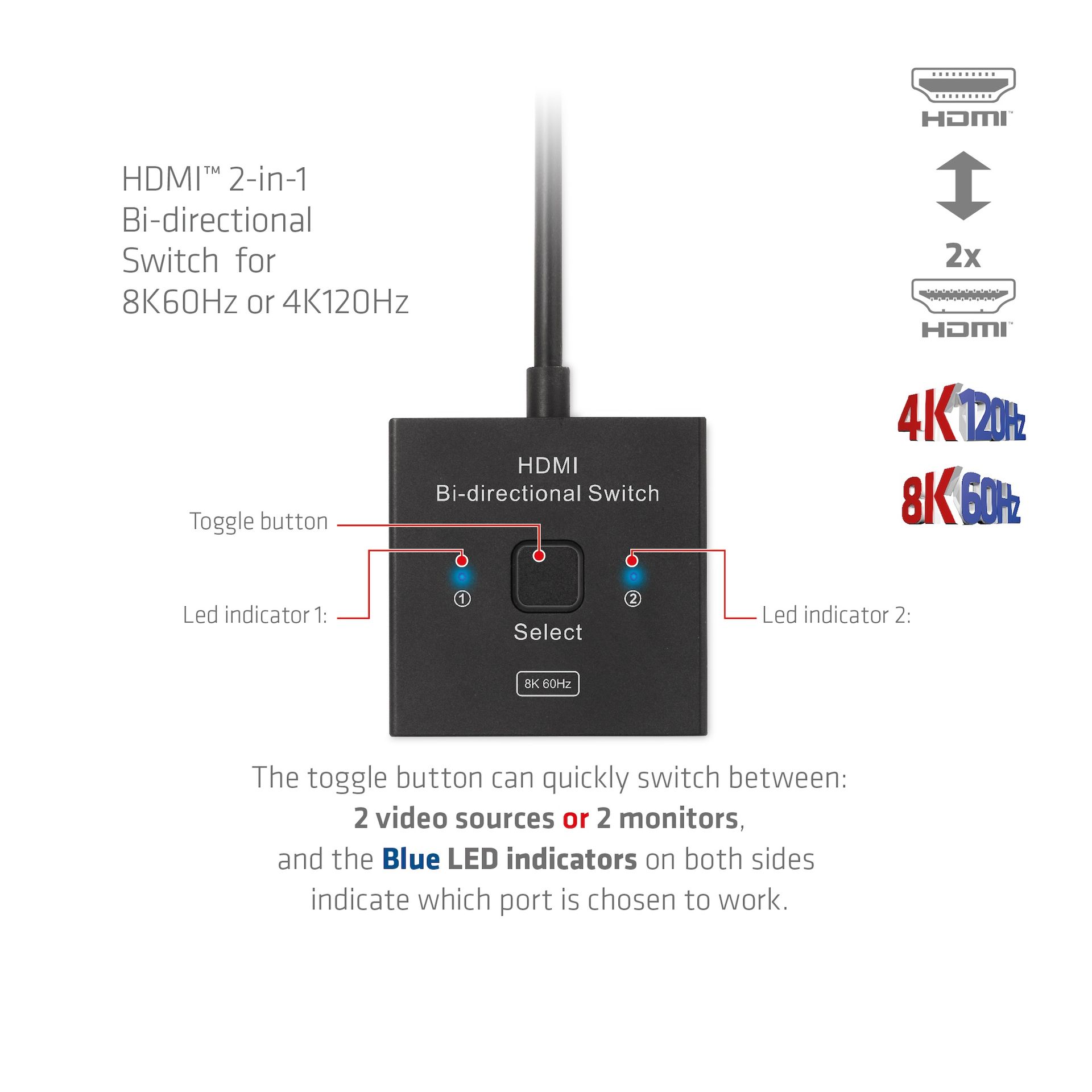

LED Indicator

  • Blue LED indicates the currently active HDMI™ channel
  • Only the selected channel will output signal

Cable Recommendation

For optimal performance at high resolutions:

  • Use HDMI™ 2.1 certified cables
  • Recommended cable length: within 3 m / 9.84 ft

Cable performance may vary depending on source devices and installation environment.

Common Questions

Will all connected displays show the same image?
No. The CSV‑1384 operates as either two HDMI™ sources to one display, or one HDMI™ source to one of two displays. Only one output channel is active at a time.

Can this product work as both a switch and a splitter?
The CSV‑1384 is a bi‑directional switch. It selects between sources or displays but does not display content on multiple displays simultaneously.

Does the device change or convert video resolution or format?
No. The CSV‑1384 does not convert the signal. All video and audio output match the source signal specifications.

Is a specific HDMI™ cable required?
HDMI™ 2.1 cables are recommended, preferably within 3 m / 9.84 ft, to ensure optimal performance at 8K@60Hz or 4K@120Hz.
