CSV-1383 Quick Install Guide

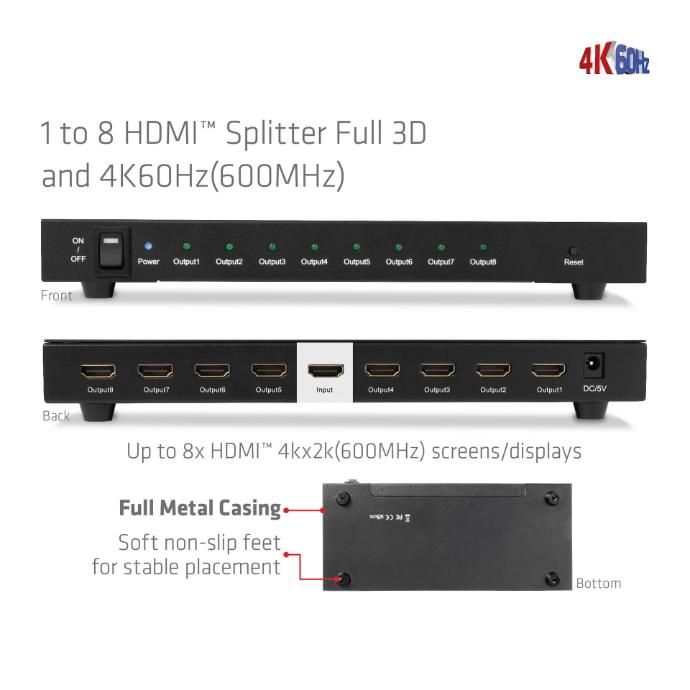

1‑to‑8 HDMI™ Splitter with Full 3D and 4K@60Hz Support



Thank you for purchasing the CSV‑1383 1‑to‑8 HDMI™ Splitter.
After unpacking the product, please ensure that all items are included and free from damage.
If any item is missing or damaged, please inform your supplier immediately.

Package Contents

  • CSV‑1383 1‑to‑8 HDMI™ Splitter
  • Power Supply (100–240 V AC / 5 V DC 3 A, plug type varies by region)

What This Product Does

The CSV‑1383 is an HDMI™ distribution splitter that takes one HDMI™ input signal and distributes it simultaneously to up to eight HDMI™ displays.

It is designed for applications such as:

  • Digital signage
  • Retail and exhibition displays
  • Control rooms and monitoring systems
  • Multi‑screen presentation environments

All connected displays show the same image at the same resolution and refresh rate.





Important Functionality Notice

The CSV‑1383 is a splitter only.

  • It does not convert, upscale, or downscale video signals
  • Output resolution and refresh rate are identical to the input signal
  • If the input signal is 4K@60Hz, all eight outputs will be 4K@60Hz
  • If the input signal is 1080p, all eight outputs will be 1080p

The splitter does not generate independent video signals.

Supported Video Features

  • HDMI™ 2.0 compliant
  • Maximum resolution up to 4K@60Hz (600 MHz bandwidth)
  • Supports HDR
  • Supports Full 3D video formats
  • Supports HDCP 2.2 and HDCP 1.4
  • Supports deep color up to 12‑bit, system dependent


Supported Interfaces Overview

Video Input

  • 1 × HDMI™

Video Outputs

  • 8 × HDMI™

Power Requirement

  • External power is required for normal operation
  • The splitter will not function correctly without the supplied power adapter
  • Always connect the power supply before switching the unit on


    Operation Notes

  • All connected displays must support the resolution and format of the HDMI™ input signal
  • High‑quality HDMI™ cables are recommended, especially for 4K@60Hz operation
  • If image issues occur after changing displays or sources, using the Reset button can help re‑synchronize outputs

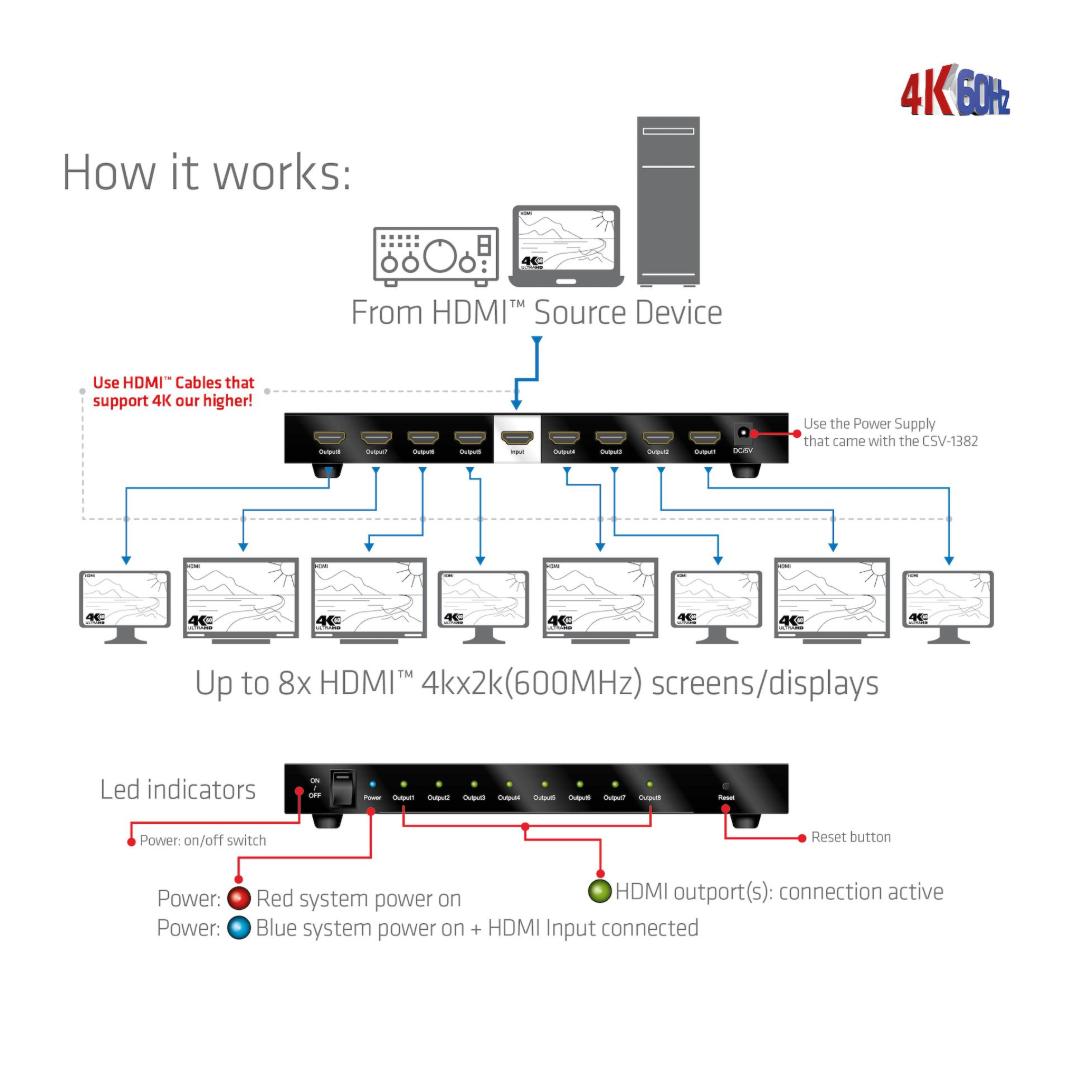

Connection Instructions

  1. Ensure the power switch is in the OFF position.
  2. Connect the HDMI™ source device to the HDMI™ input of the splitter.
  3. Connect up to eight HDMI™ displays to the HDMI™ output ports.
  4. Connect the power supply to the splitter.
  5. Switch the power ON.
  6. If needed, use the Reset button to re‑initialize the connection.









Ready for Use

Once powered and connected, the CSV‑1383 will distribute the HDMI™ source signal to all connected displays simultaneously.


Common Questions

Does the CSV‑1383 show different images on each display?
No. All outputs display the same image.

Does the splitter change video resolution or quality?
No. The input signal is passed through without modification.

Is external power required?
Yes. External power is mandatory for operation.

Can this be used for eight independent workstations?
No. The CSV‑1383 is designed for mirrored display setups, not independent displays.
